Here at RMG Design we have a large experience of designing many injection mould tools and always strive to meet the clients requirements.





We are highly proficient in 3D CAD in the form of SolidWorks and can create complex tool designs ready to program cutter paths directly from meeting the demands of the modern toolroom.





In addition usual 2D formats are supplied in the form of G.A's and detail drawings. File formats are supplied to the clients requirements be it igs, step, parasolid, acad, etc. To tie the design up we create a BOM to the clients prefered supplier list.

  • Hardened Production Tools
  • Low Volume Aluminium Tools
  • Prototype Tools
  • Multicavity / Family Tools
  • Fixed Half Ejection Tools
  • 3 Plate Tools
  • Hot Runner Systems

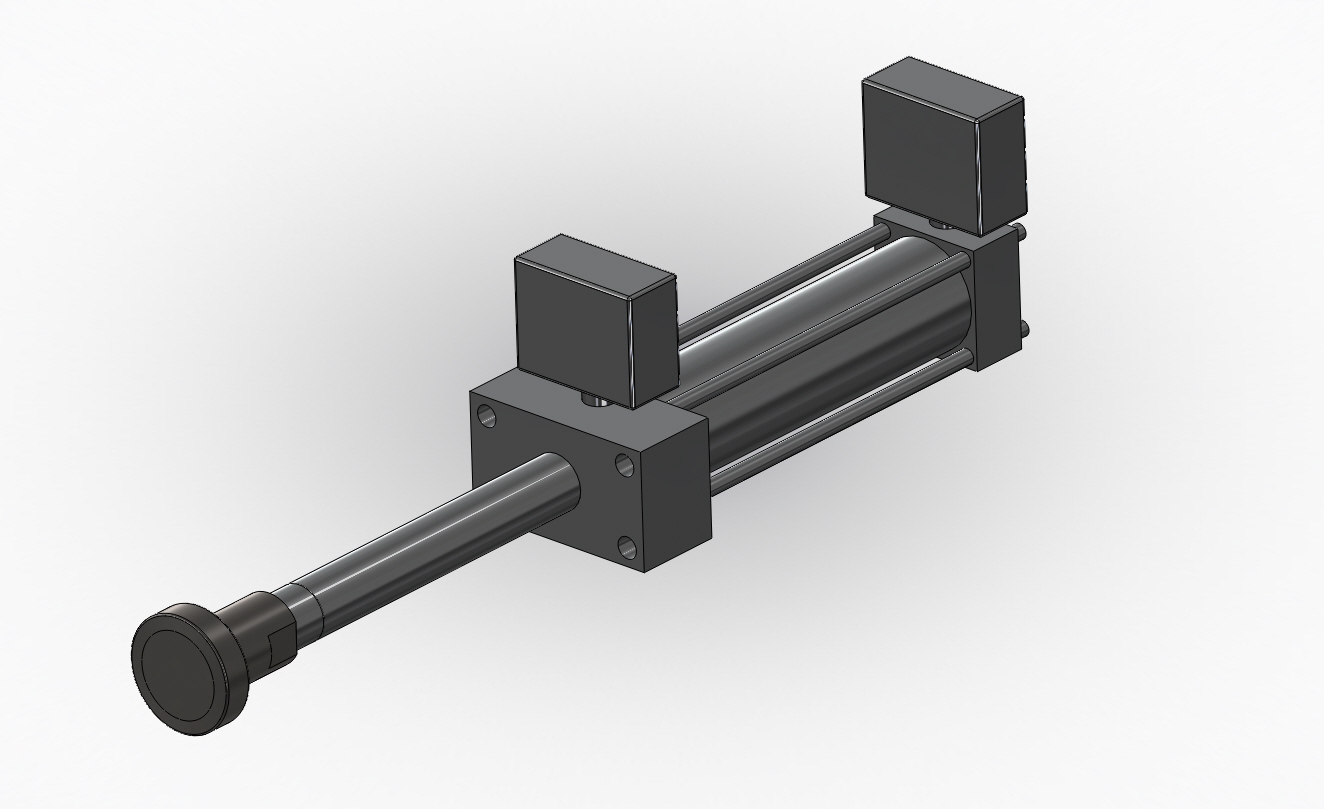

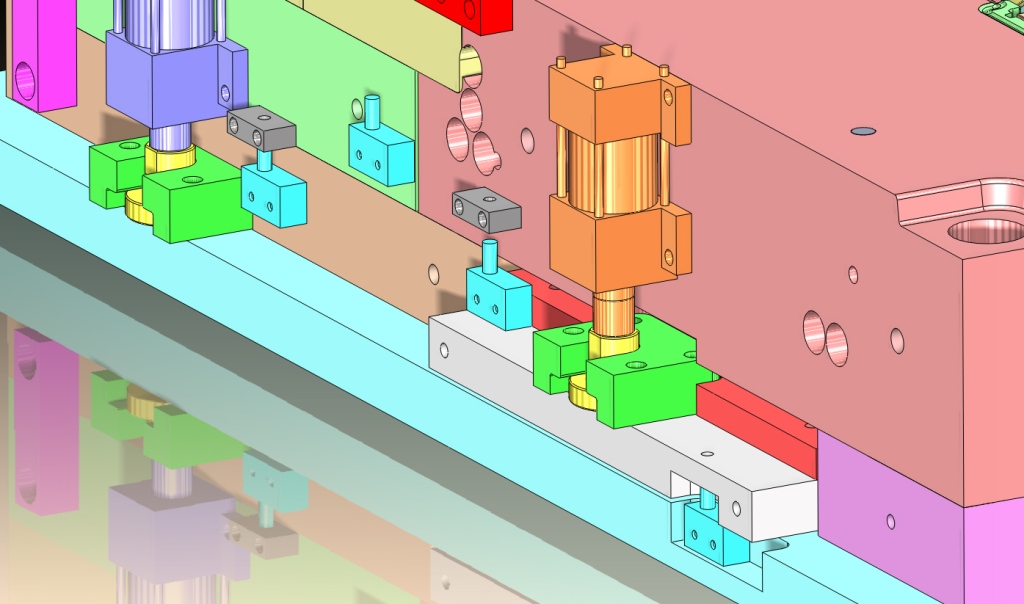

  • Hydraulic Side Cores / Slides

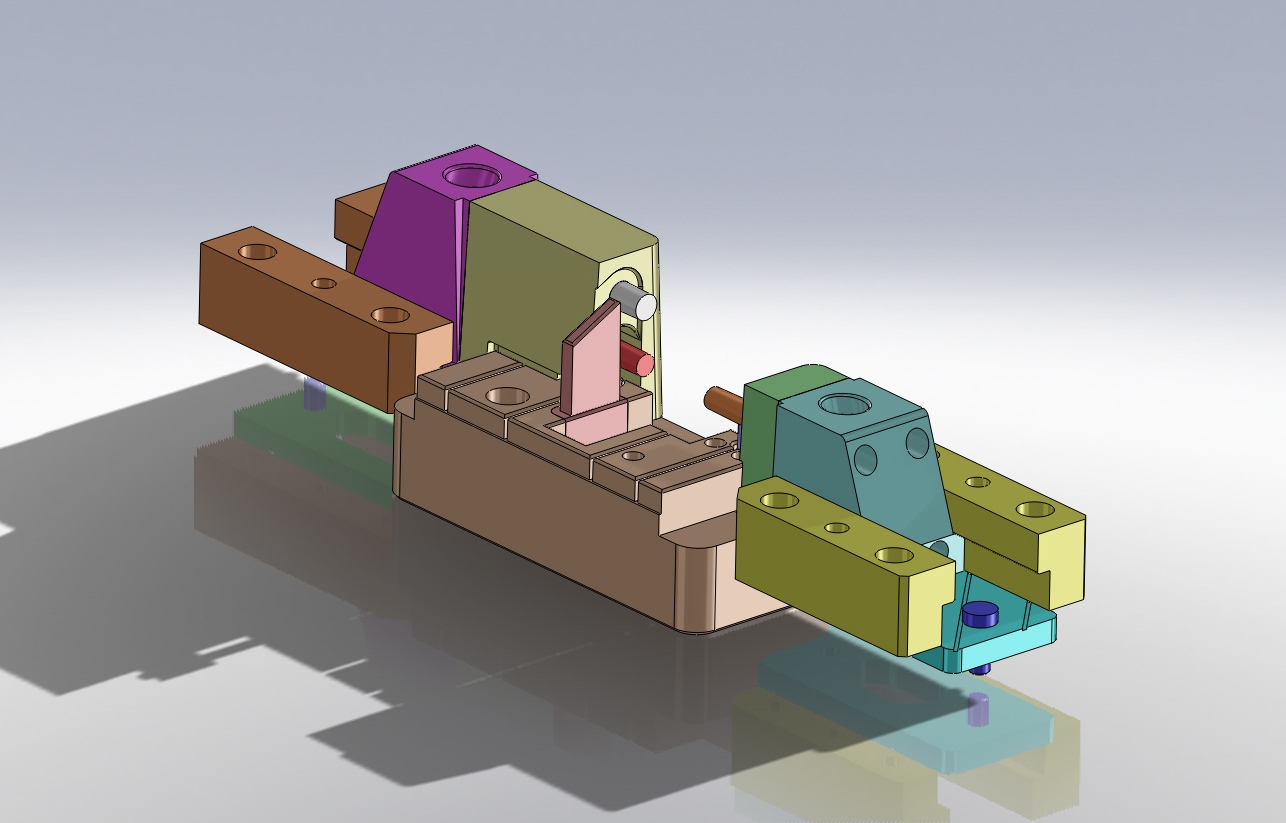

  • Mechanical Slides
  • Up And Aways
  • Sprung Cores

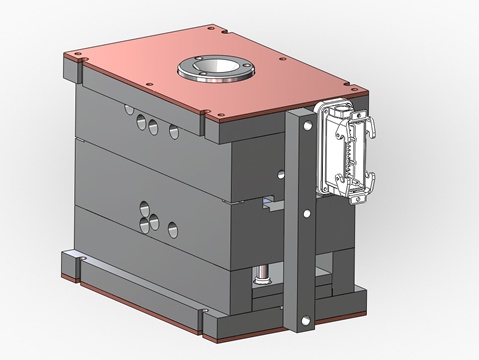

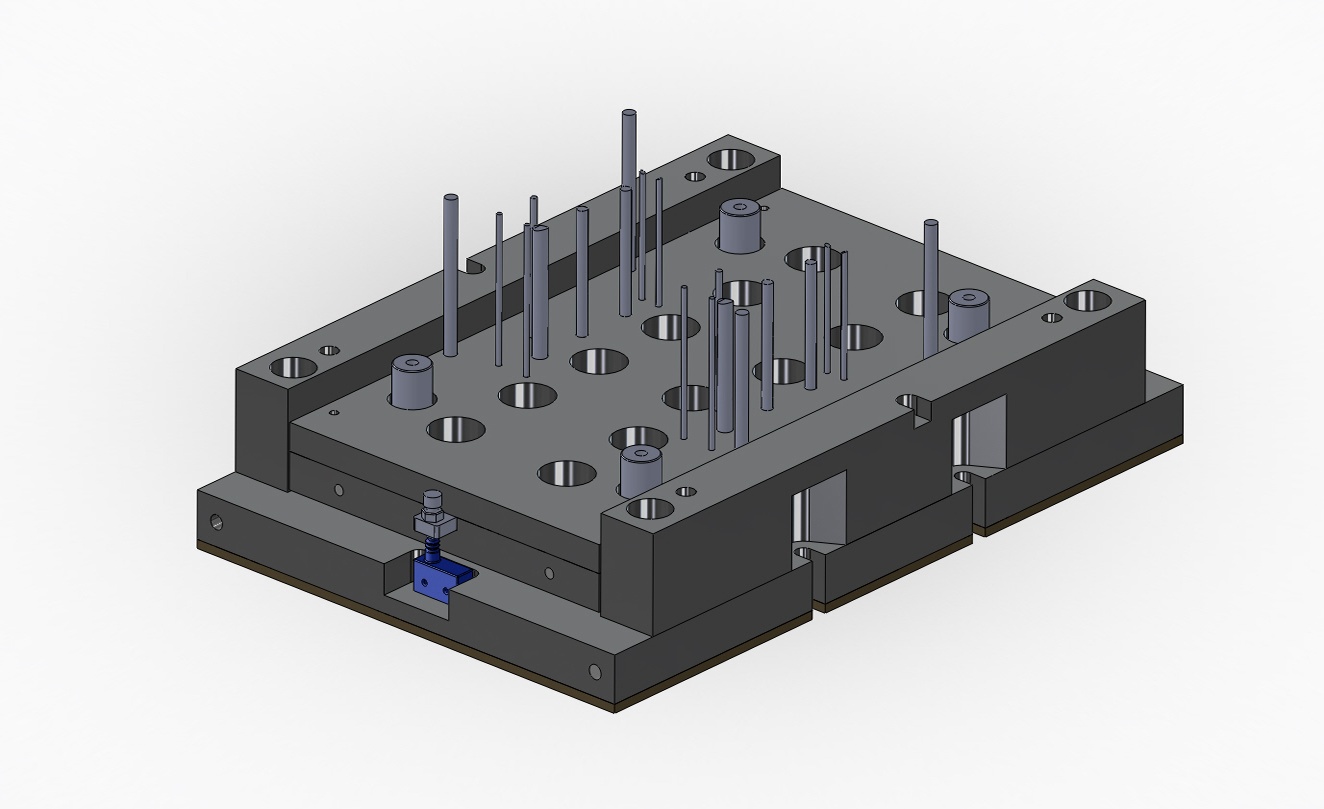

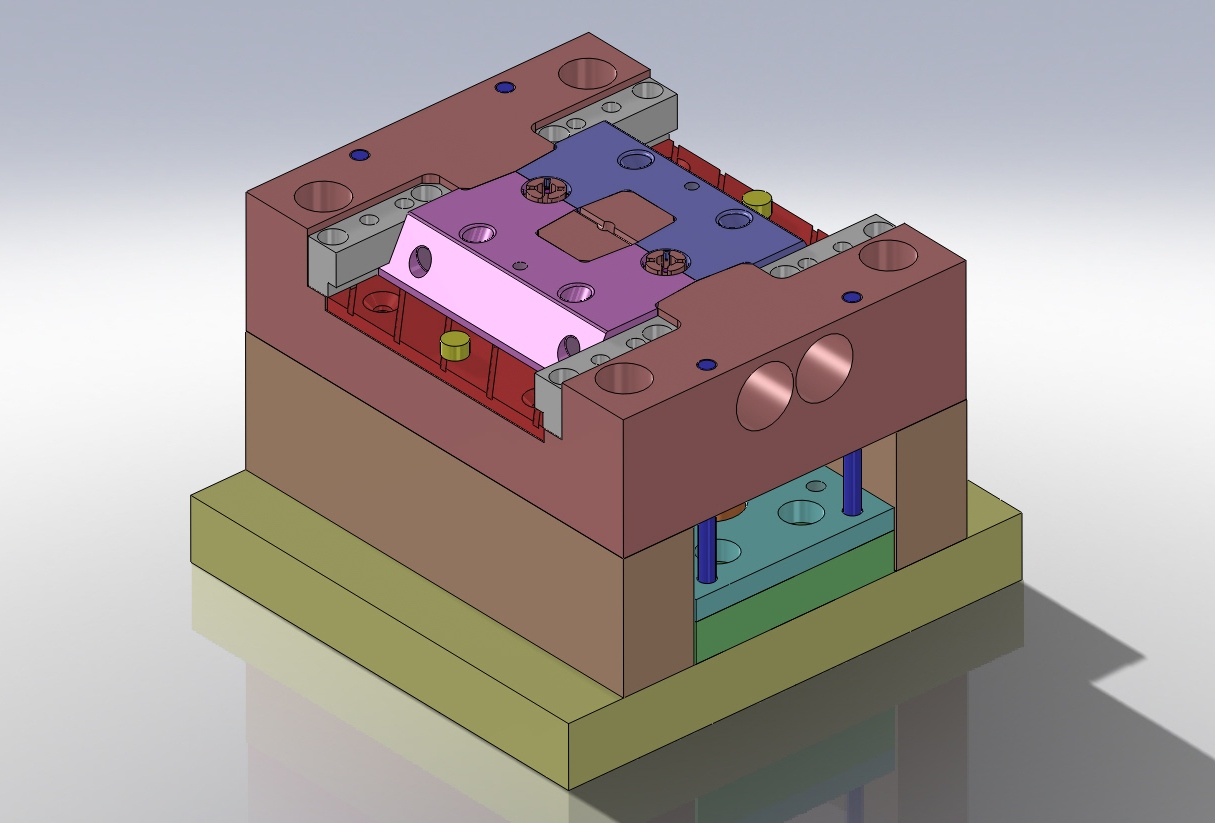

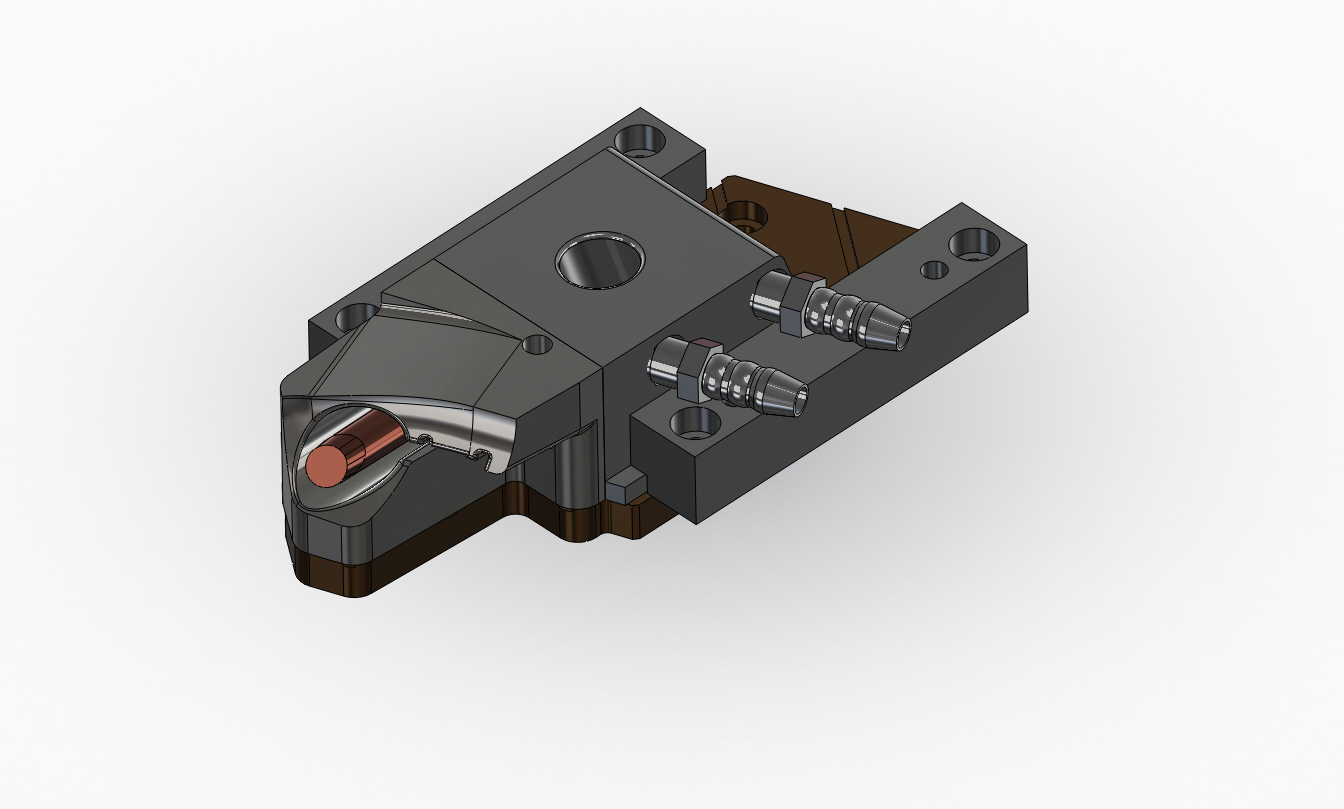

Sample Of Our Design Scope
